Phased Array (PAUT) Wedges

Enhance your non-destructive testing capabilities with our premium selection of Phased Array Ultrasonic Testing (PAUT) wedges. Designed for seamless compatibility with our Olympus-style B-Series probes (B10, B11, B15, B31, and B32), these wedges are engineered to deliver precise refracted angles—specifically 55° and 60° Shear Waves—ensuring optimal flaw detection for weld joint inspections and complex geometries. Our catalog features two distinct styles to meet your testing requirements:

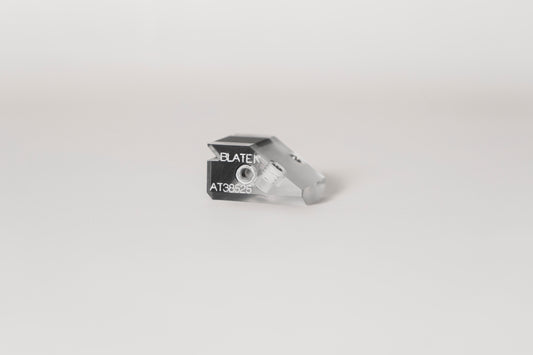

  • Standard Wedges: High-quality, plain wedges ideal for everyday manual scanning and general-purpose inspections.

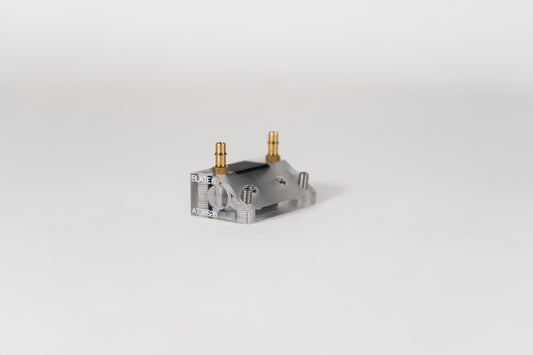

  • SWPC Upgraded Wedges: Built for demanding environments and automated setups, these wedges come fully equipped with Scanner mount holes for rig attachment, carbide Wear pins to protect the bottom of the wedge from rough surfaces, and integrated Couplant ports for continuous irrigation.
